Caliper Instruction


STEP
01
STEP
02
STEP
03

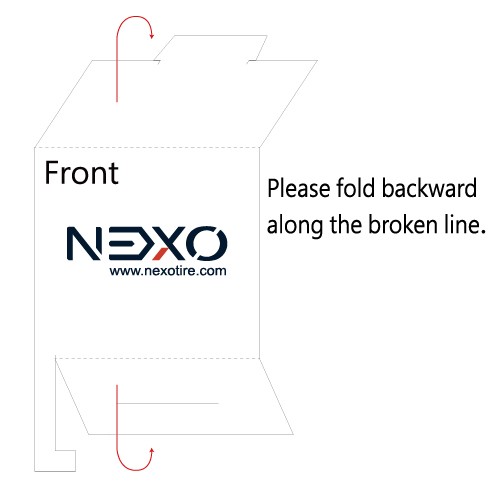

turn back front side from right to left.

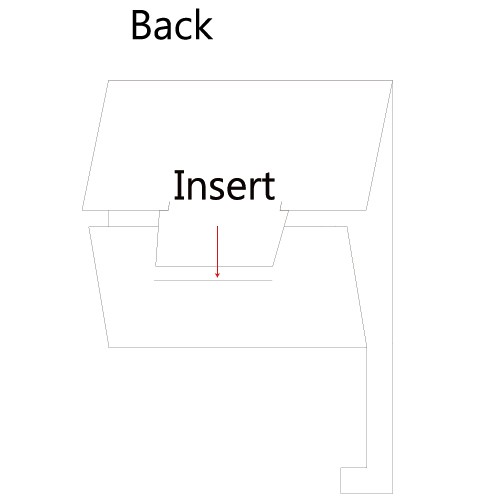

insert in the printed gauge caliper.

Measurement illustration

Caution
  • Do not make caliper bend inward and sideling to avoid affecting the accuracy.
  • Please always choose the larger one if you are not sure which T-Bolt sizes could be fitted.
  • This version is the test sample in first stage.
  • Please check proper T-Bolt size to be used and that would be exact if you have standard vernier caliper at hand.
  • Please feel free to contact us if you have any questions and suggestions.

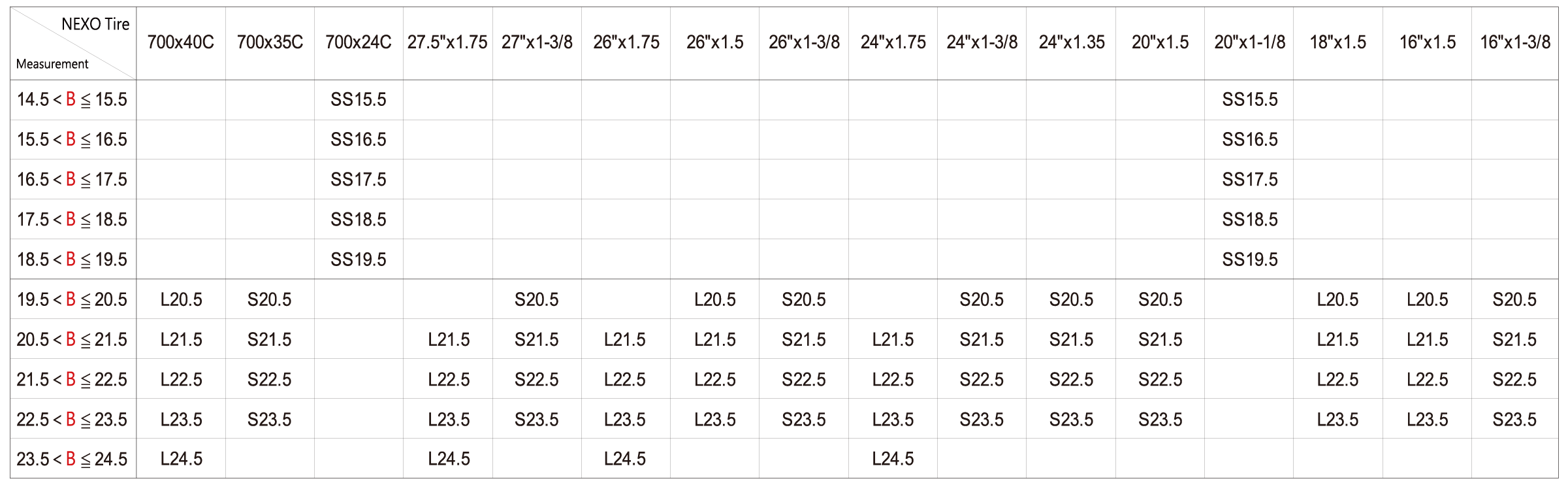

Measurement comparison table

Normally, there will be a size shown on your rim. Please check your tire size and the rim inner size, then find the sutable T-Bolt size for your rim.

B means the correct width measured.
